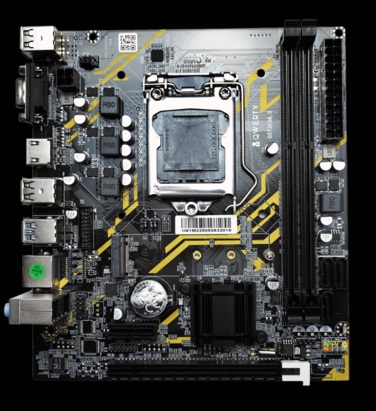

QWERT H81M High Performance Motherboard

CPU	Support LGA1150 socket i3/i5/i7 series CPU
Chipset	Intel H81 Express Chipset
Memory	2 × 240-pin DDR3 SDRAM slots
Memory up to 16GB
Supports dual channel DDR3 1066 / 1333 / 1600 MHz
I/O Interface	4 × USB 2.0 ports
2 × USB 3.0 ports
1 × VGA port
1 × HDMI port
1 × RJ45 port
1 × 3-in-1 Audio port (Line In / Line Out / MIC IN)
Onboard Interface	1 × 24-pin ATX power connector
1 × 4-pin ATX 12V power connector
2 × USB connector (can supports 2 × USB 2.0)
1 × F_AUDIO connector
1 × F_PANEL connector
1 × SPEAKER connector
1 × FAN connector
1 × TPM connector
Integrated Sound	6-channel HD Audio Codec onboard;
provides front audio interface;
provides front stereo mic interface
Storage	2× SATA2.0 (3 GB/s) ports
1× SATA3.0 (6 GB/s) ports
Integrated LAN	100/1000 Mbps LAN onboard
Expansion Slot	1 × PCI Express x16 slot
1 × PCI Express x1 slot
1 × NVME / NGFF M.2 slot
Dimension	Micro-ATX architecture (17 × 19 cm)
